Cost management on agentgateway: budgets, virtual keys and per-team spend

What you'll build

   client ── POST /openai ─────────────▶ agentgateway (Gateway: agentgateway)
   Authorization: Bearer <virtual key>      │
                                            │ EnterpriseAgentgatewayPolicy
                                            │   apiKeyAuthentication (Strict): verify the virtual key,
                                            │     expose its metadata to CEL as apiKey.*
                                            │   entBudgetEnforcement: resolve budget dimensions,
                                            │     enforce any matching budget, tag the span
                                            ▼
                                   AgentgatewayBackend (openai / anthropic)  ──▶ LLM provider
                                            │  priced span: tokens × model price = spend
                                            ▼
              solo-enterprise-telemetry-collector ──▶ ClickHouse (agw_spans_typed)
                                            │  materialized views roll up 5-min buckets
                                            ▼
                              Cost Management dashboard  (Spend · Dimensions · Budgets · Virtual Keys)

A request has to carry a valid virtual key or it never reaches a provider. That key's metadata (team, cost centre, user) rides through as budget dimensions, so the same call both accrues attributed spend and counts against any budget scoped to it.

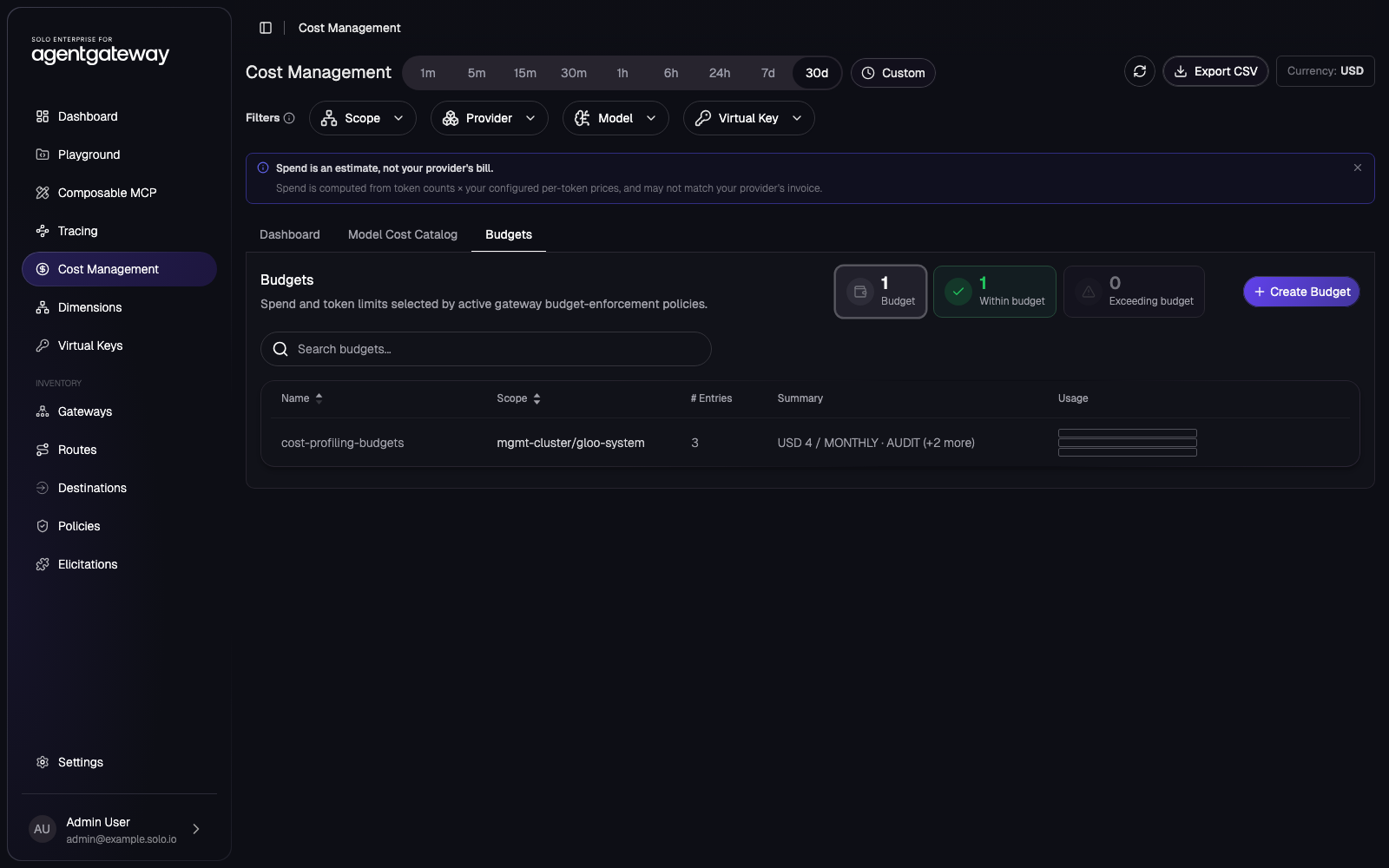

Budgets: Audit versus Block

A budget is an EnterpriseAgentgatewayBudget. Each entry names a limit (a dollar amount or a token count), a rolling window, a subject that scopes it to a budget dimension, and what to do when it is exceeded. Audit records the overage and lets the request through, so you can watch spend before you gate it. Block denies further spend for that subject once the limit is hit, which is your denial-of-wallet stop.

apiVersion: enterpriseagentgateway.solo.io/v1alpha1
kind: EnterpriseAgentgatewayBudget
metadata:
  name: cost-profiling-budgets
  namespace: gloo-system
spec:
  budgets:
    - name: individual-alice
      subject: {user: alice}
      limit:  {amount: 4,  unit: USD}
      window: {unit: Month}
      onBudgetExceeded: Audit          # log the overage, keep serving
    - name: team-engineering
      subject: {group: engineering}
      limit:  {amount: 50, unit: USD}
      window: {unit: Month}
      onBudgetExceeded: Block          # deny once the team hits $50/month
    - name: org-wide-tokens
      subject: {}                      # empty subject = whole org
      limit:  {amount: 20000000, unit: Tokens}
      window: {unit: Month}
      onBudgetExceeded: Block

Virtual API keys carry the identity

A virtual key is an opaque key you hand to a team or app that maps to metadata the gateway can read, rather than a raw provider key. It lives in a Kubernetes Secret labelled agentgateway.solo.io/virtual-key-set; each entry is a small JSON blob with the key and its metadata (organisation, cost centre, group, user, environment, project, application). The gateway's apiKeyAuthentication selects that Secret and hoists each metadata field onto the CEL apiKey object, so a field costCenter reads as apiKey.costCenter, which is what the budget dimensions read.

apiVersion: enterpriseagentgateway.solo.io/v1alpha1
kind: EnterpriseAgentgatewayPolicy
metadata:
  name: cost-management-api-key
  namespace: gloo-system              # same namespace as the HTTPRoute it targets
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: openai
  traffic:
    apiKeyAuthentication:
      mode: Strict                    # no valid virtual key, no LLM
      secretSelector:
        matchLabels:
          agentgateway.solo.io/virtual-key-set: cost-demo-virtual-keys
    entBudgetEnforcement:
      discovery:
        namespaces:
          from: All

With the policy attached, the enforcement is exactly what you'd want: a request with no key is rejected, a request with a seeded key reaches the provider and its spend is attributed to that key's team.

  $ curl -s -o /dev/null -w '%{http_code}\n' -X POST localhost:8080/openai \
      -H 'content-type: application/json' -d '{"messages":[{"role":"user","content":"hi"}]}'
  401                                                        # Strict: no virtual key

  $ curl -s -X POST localhost:8080/openai \
      -H 'Authorization: Bearer sk-acme-prod-001' \
      -H 'content-type: application/json' -d '{"messages":[{"role":"user","content":"hi"}]}'
  {"model":"gpt-3.5-turbo-0125","usage":{"total_tokens":18}, ... }   # priced, attributed to acme-corp / engineering

Attribution by dimension

A dimension is a label the gateway resolves per request from the virtual key metadata or a JWT claim, using CEL. The built-in dimensions are model and provider; on top of those the default configuration adds group and user as a hierarchy and virtualKey as an attribute. You add your own declaratively in the gateway's budgetDimensions.config (a Helm value the chart renders into a ConfigMap the proxy mounts). This lab adds four: costCenter, environment, project and application, each a CEL expression like coalesce(apiKey.costCenter, jwt.cost_center) so the value comes from the virtual key, falling back to a JWT claim. The Dimensions tab also lets you author them from the UI, but keeping them in yaml/budget-dimensions.values.yaml means a fresh cluster comes up with them already defined.

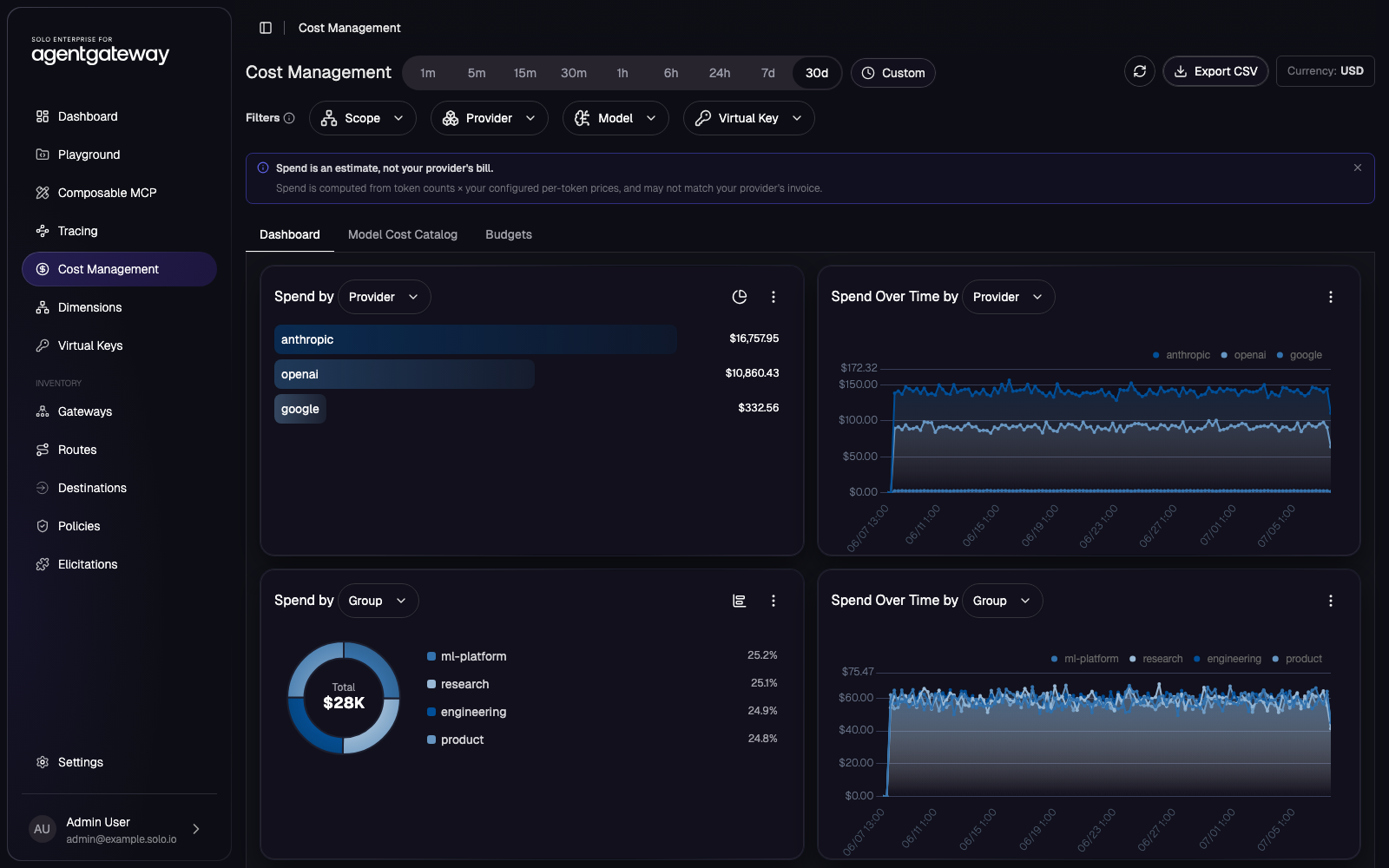

Every priced span carries those resolved dimensions, so the dashboard can slice total spend by any of them: which team is spending, which model dominates the bill, which virtual key is hot. The Spend-by control on each panel just changes the dimension it groups on.

The Model Cost Catalogue

Spend is an estimate, not your provider's invoice: the gateway computes it as token count times a per-model price. Those prices are the Model Cost Catalogue, one input and output price per million tokens per model, with optional cache-read and cache-write prices for providers that support prompt caching. Edit a model's price on the catalogue tab and the spend charts recompute against it, so the catalogue and the dashboard always agree.

Run it

scripts/setup.sh brings the whole thing up on one kind cluster: the enterprise agentgateway (with the custom dimensions), the Solo Enterprise management UI and its ClickHouse with products.agentgateway.features.cost-management: true, then the cost pipeline below. It needs AGENTGATEWAY_LICENSE_KEY and OPENAI_API_KEY in your shell. The steps below are what it applies, if you want to run them by hand on an existing cluster.

./scripts/setup.sh                              # cluster + gateway + UI + pipeline
TRUNCATE=true ROWS=300000 DAYS=30 ./scripts/seed-clickhouse.sh   # a month of spend
kubectl -n kagent port-forward svc/solo-enterprise-ui 8090:80   # then open /age/cost-management

# 1. virtual keys (labelled Secret the api-key policy selects)
#    built from yaml/virtual-keys.csv — one {key, metadata} entry per row

# 2. gateway + backend + /openai route + api-key/budget-enforcement policy
OPENAI_API_KEY=sk-... envsubst < yaml/gateway-resources.yaml | kubectl apply -f -

# 3. budgets (so dimensions attribute and limits enforce)
kubectl apply -f yaml/budgets.yaml

# 4. send traffic with a seeded virtual key
kubectl port-forward -n gloo-system svc/agentgateway 8080:8080 &
curl -X POST localhost:8080/openai -H 'Authorization: Bearer sk-acme-prod-001' \
  -H 'content-type: application/json' -d '{"messages":[{"role":"user","content":"hello"}]}'

Live traffic accrues real spend, but a fresh cluster starts empty and the charts need history to be worth looking at. scripts/seed-clickhouse.sh backfills a month of synthetic spend straight into the agw_spans_typed table, the same table real traffic writes to, so the materialized views roll it up into the by-model and by-dimension views the dashboard reads. It seeds five models across three providers and four teams, so every panel and every filter has data.

# ~300k priced requests spread across the last 30 days, into the buckets the page reads
TRUNCATE=true ROWS=300000 DAYS=30 ./scripts/seed-clickhouse.sh
# → requests  296.81 thousand
#   tokens    8.83 billion
#   spend_usd $27,951

See also

• Per-team static key injection (the identity-to-backend half, the same virtual-key idea for upstream credentials)
• Per-team Bedrock cost with application inference profiles (cost attribution on the AWS side)
• Solo — agentgateway LLM cost, budgets and observability

Versions

Built and verified on:
