Deploying an MCP tool through the AgentRegistry UI, part 1: publish, deploy, expose

What is running before the first click

The environment is a single Kubernetes cluster carrying four things:

• Solo Enterprise for agentregistry v2026.7.1, installed in-cluster by Helm with a bundled Postgres. The UI and API are served through the gateway.
• Solo Enterprise for kagent: the runtime the server will be deployed to.
• Enterprise agentgateway v2026.8.0: one proxy acting as the ingress for every console and every MCP endpoint on this page. The Virtual runtime needs v2026.8.0 or later.
• Keycloak, one realm, the single OIDC issuer for everything: the registry UI, the kagent UI, the registry's own calls to the kagent control plane, and the bearer tokens on MCP traffic.

Two test users exist in the realm, and the difference between them is the point of the exercise:

The group lands in each user's JWT as a Groups claim via a Keycloak group-membership mapper. Everything below hangs off that one claim.

The MCP server being deployed

The worked example is a small FastMCP server called incident-tools, scaffolded with arctl init mcp, exposing three tools:

• list_open_alerts: open alerts, optionally filtered by service
• correlate_alerts: groups open alerts into per-service incidents
• acknowledge_alert: the write tool, and the one the policy will hide from developers

Its image is built and pushed to an OCI registry the cluster can pull from, here a local registry at localhost:5001; in production this is your ECR, GAR or Artifactory. One build-time decision matters later: the image forces HTTP transport rather than the FastMCP default of stdio.

ENV MCP_TRANSPORT_MODE=http
ENV HOST=0.0.0.0
ENV PORT=3000

Without those, the deploy in step 3 completes and the pod runs, but kagent cannot open a session against it. The failure is quiet and the error, when it surfaces, is "Failed to create MCP session".

Step 1: connect kagent as a runtime

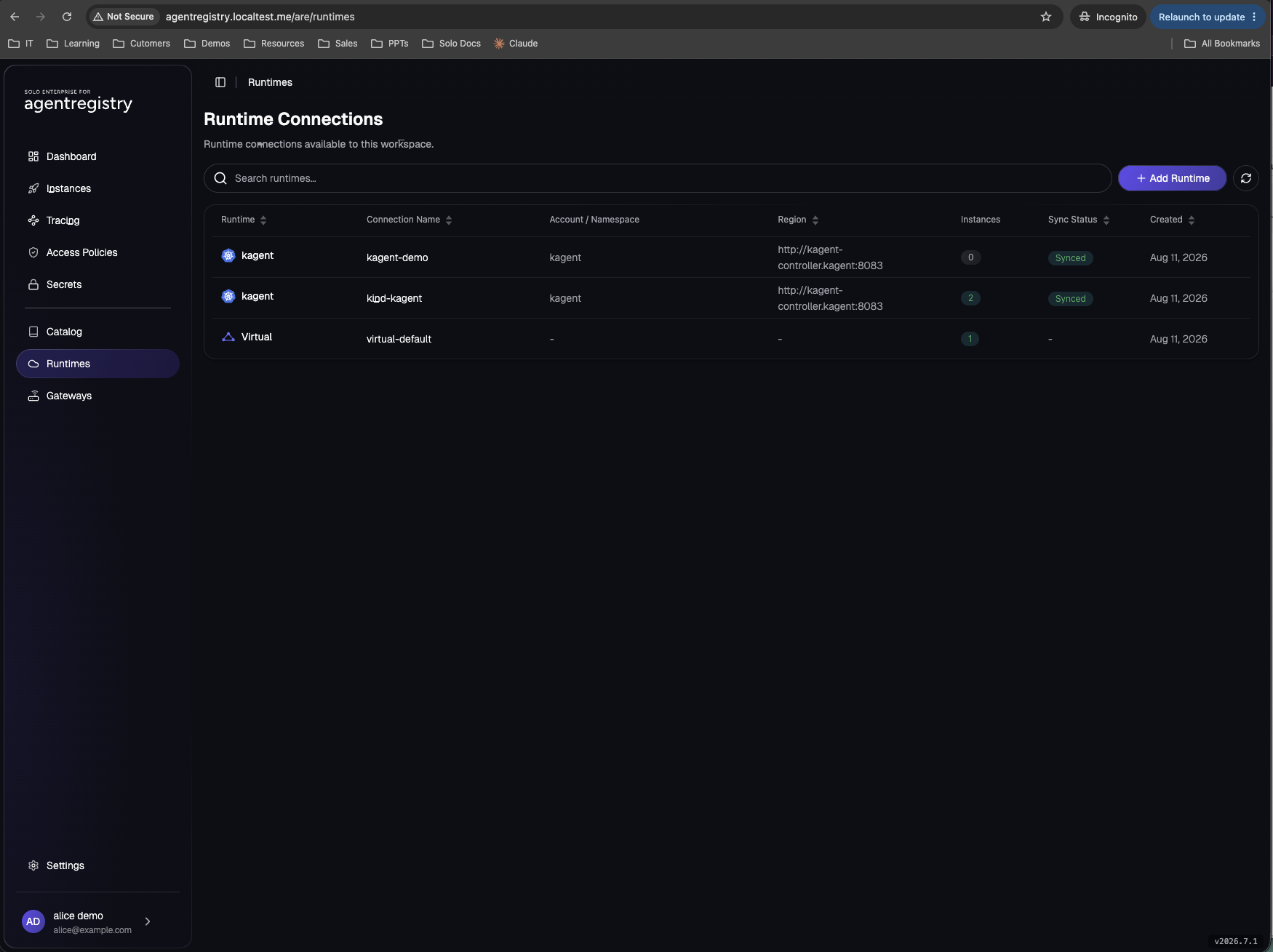

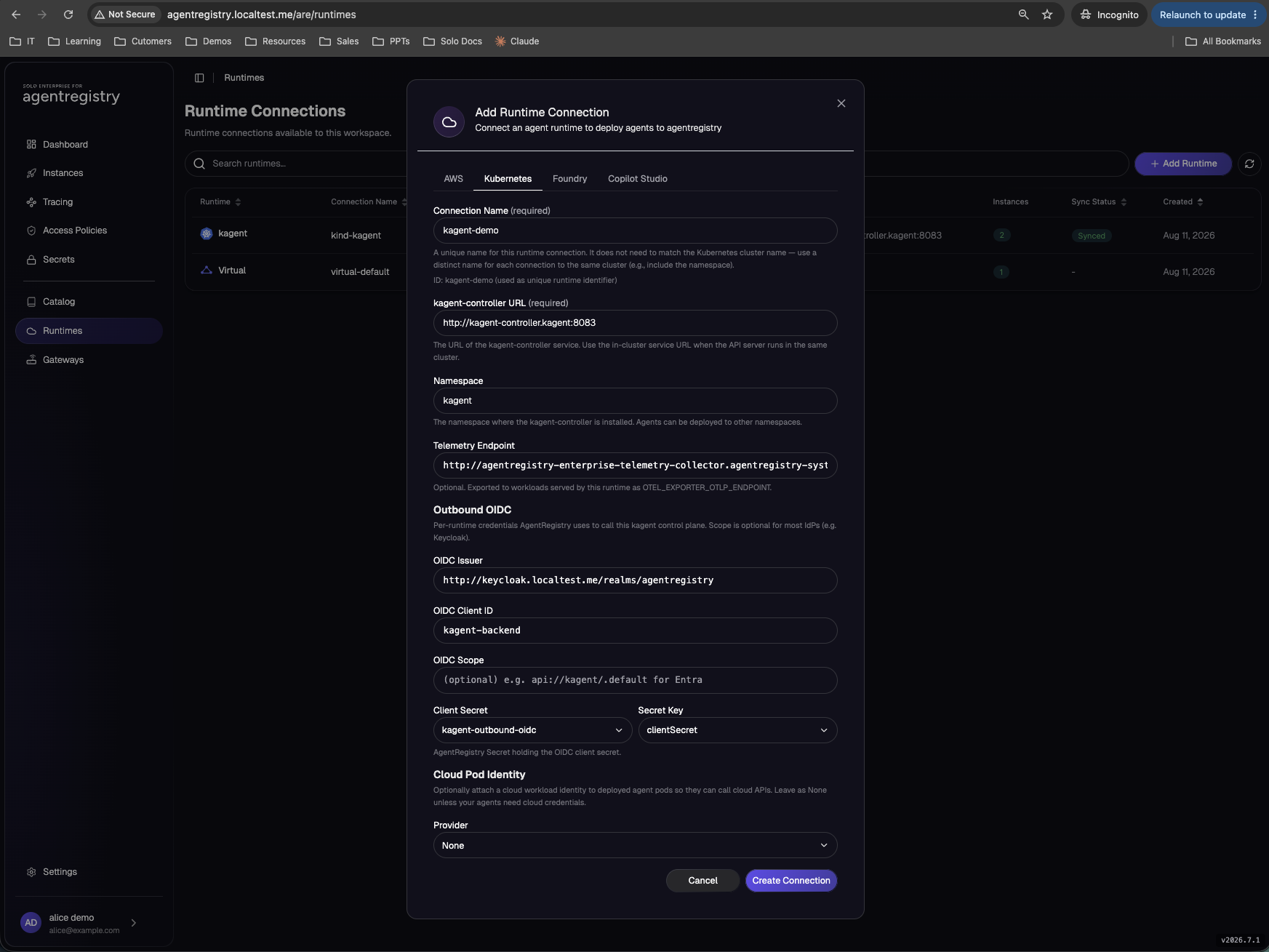

A runtime is a destination the registry can deploy to. Registering one is a UI action: Runtimes → Add Runtime Connection → Kubernetes. The form wants the kagent controller's address, the namespace it lives in, and, for kagent runtimes, an Outbound OIDC block.

Machine-to-machine auth uses the same identity model as user login. The user logged into the UI with Keycloak; the registry now authenticates to the runtime with Keycloak too. There is no shared admin token between the two systems, and revoking the registry's access is a Keycloak operation, not a redeploy.

Step 2: publish the server to the catalogue

A catalogue entry is a pointer plus metadata, not a copy of the artifact. For an OCI-packaged server, publishing records where a runtime can pull the image from and how to talk to the process once it runs. The image itself stays in the OCI registry and is pulled at deploy time, not at publish time.

Catalog → Create MCP Server. The form has two panels. Basic Information first:

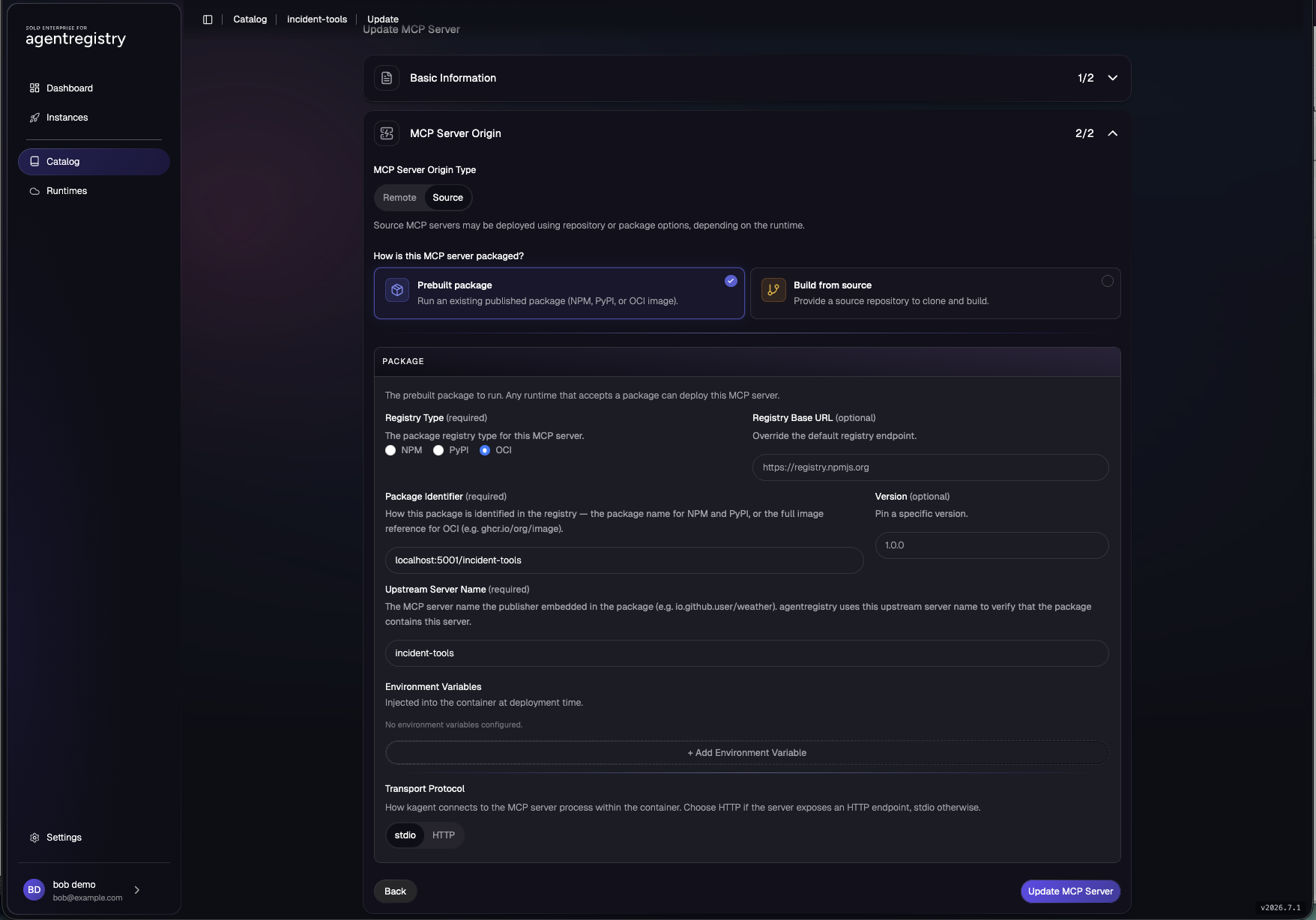

Then MCP Server Origin. Pick Source, then Prebuilt package, and fill the Package panel:

The identifier is the same string you would give docker pull: registry host, repository, tag. The Upstream Server Name is an integrity check: for published packages the registry verifies the package really contains the server it claims to. Local-registry images are exempt from that verification, so this entry publishes immediately.

Step 3: deploy it to kagent

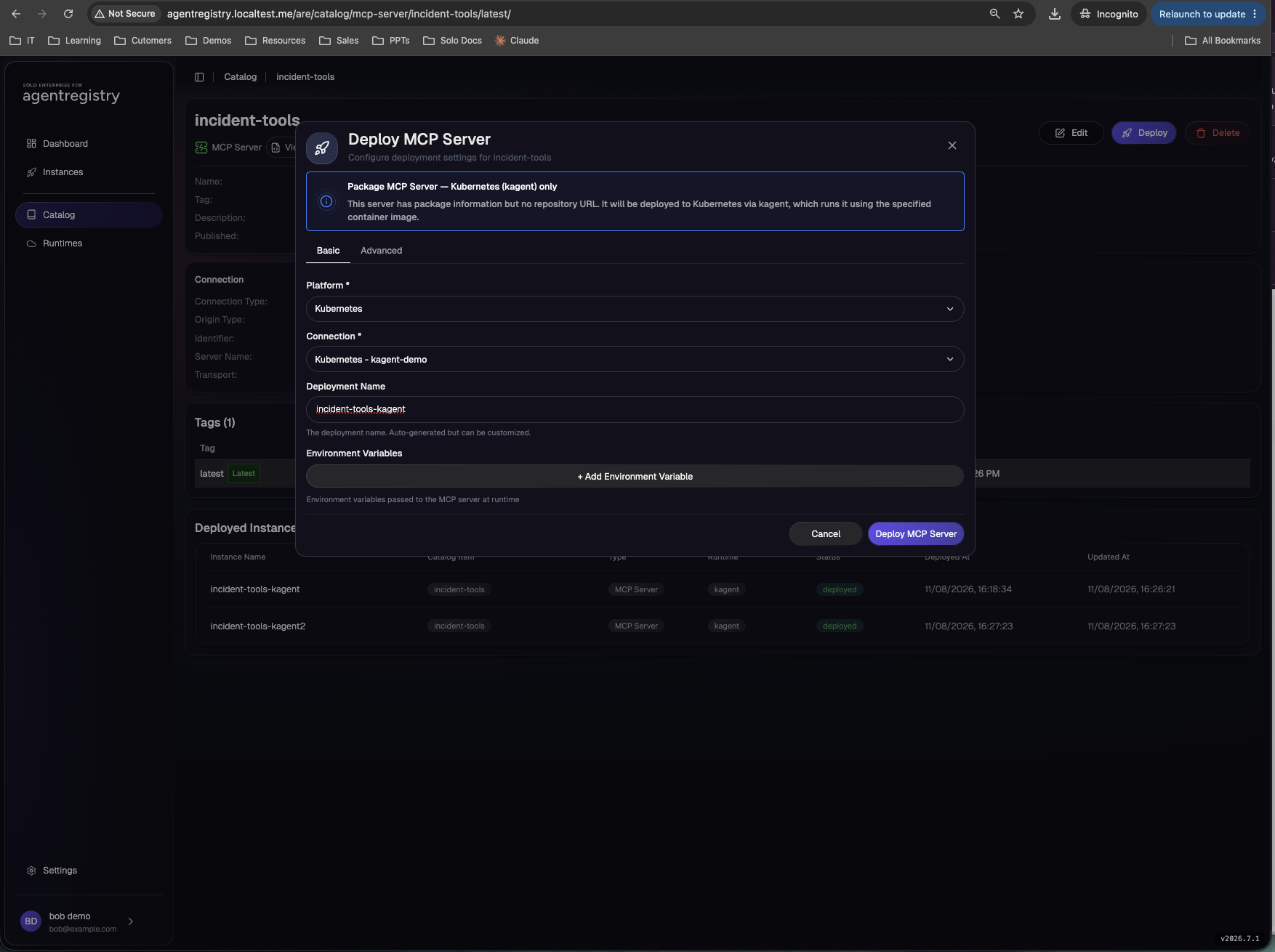

Open the new catalogue entry and press Deploy MCP Server.

The deployment name labels the registry's record of this rollout. The pod and service take their names from the catalogue entry, so they come out as incident-tools. Three objects appear in the kagent namespace:

1. The server pod, pulling localhost:5001/incident-tools:latest.
2. A Service with the port marked appProtocol: kgateway.dev/mcp. kagent stamps that protocol marker on every MCP server it runs, and it matters in the last section.
3. A dedicated agentgateway waypoint pod, mcpserver-incident-tools-waypoint. Solo Enterprise for kagent puts one in front of every MCP server it manages.

At this point the server is running and healthy, and reachable only from inside the cluster.

Step 4: give it a gateway route with the Virtual runtime

Alongside real runtimes like kagent, the registry seeds a runtime called virtual-default whose type is Virtual. It runs nothing: it is agentgateway registered as a deploy destination.

Because a Virtual runtime runs nothing, it can only route to something already running, so it targets remote-type catalogue entries: entries that are just a URL. The pod from step 3 sits behind incident-tools.kagent.svc.cluster.local:3000, and that is the URL to register.

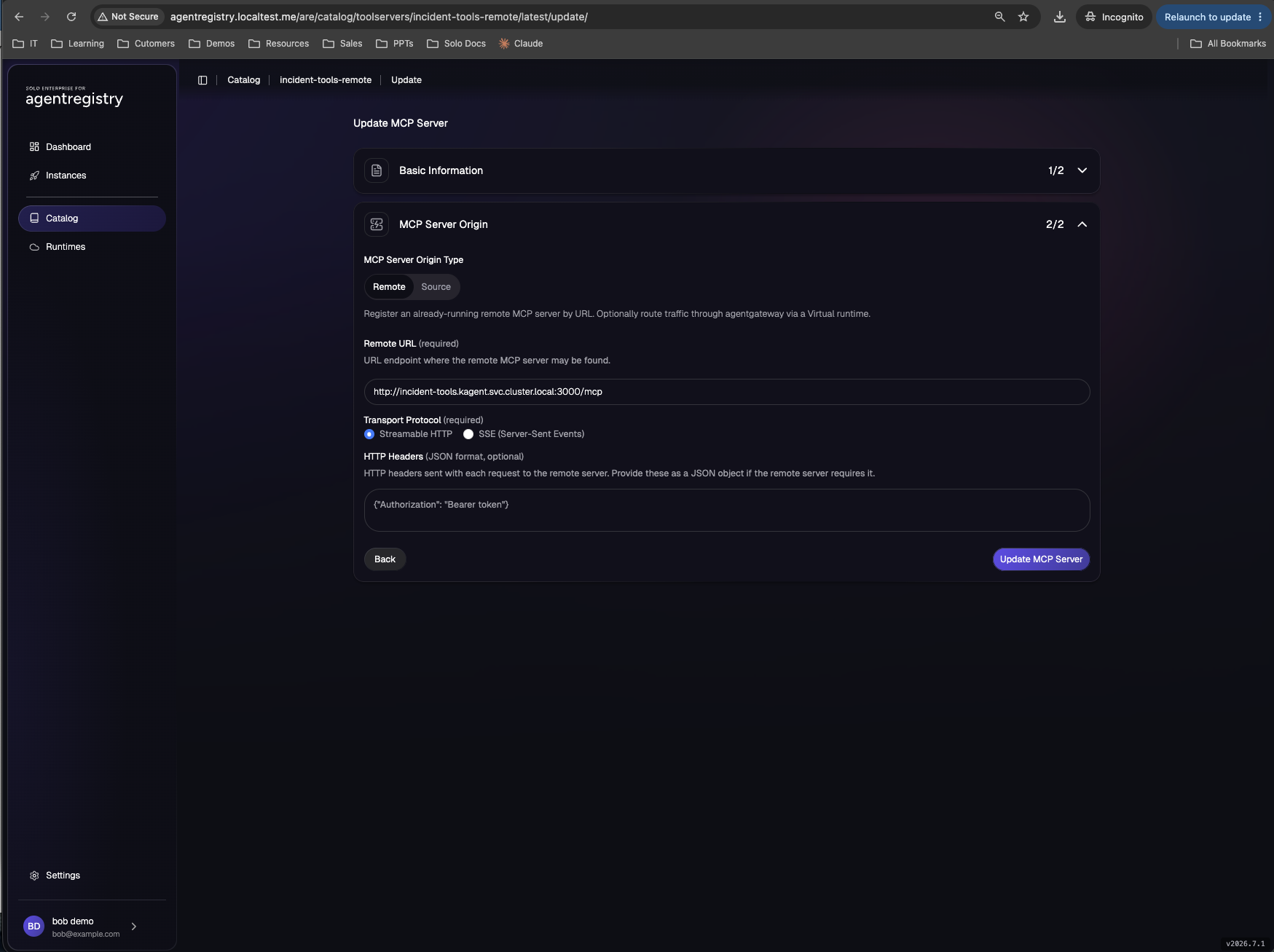

First the remote entry. Catalog → Create MCP Server, origin type Remote this time:

Then deploy that entry to the Virtual runtime: Deploy MCP Server on incident-tools-remote, runtime virtual-default, deployment name incident-tools-virtual, route path suffix /incident-tools.

Behind the click, the registry generates a delegated HTTPRoute and an EnterpriseAgentgatewayBackend, the gateway controller accepts them, and the deployment reports deployed with the exposed URL in status.details.agentgateway.exposedAt. On this cluster the route serves at http://mcp.localtest.me/registry/incident-tools.

Step 5: prove the policy from a terminal

Two helper functions keep the probes short. mint gets a Keycloak token for a user with the password grant; tools runs the MCP handshake against a gateway URL with that token and prints the tool names the caller is allowed to see:

mint() { curl -s -X POST http://keycloak.localtest.me/realms/agentregistry/protocol/openid-connect/token \
  -d "grant_type=password&client_id=ar-cli-password&username=$1&password=$2" | jq -r .access_token; }
tools() { local T="$1" URL="$2"
  SID=$(curl -s -X POST "$URL" -H "Authorization: Bearer $T" \
    -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
    -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"probe","version":"0"}}}' \
    -D - -o /dev/null | awk 'tolower($1)=="mcp-session-id:"{print $2}' | tr -d '\r')
  curl -s -X POST "$URL" -H "Authorization: Bearer $T" -H "Mcp-Session-Id: $SID" \
    -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
    -d '{"jsonrpc":"2.0","method":"notifications/initialized"}' >/dev/null
  curl -s -X POST "$URL" -H "Authorization: Bearer $T" -H "Mcp-Session-Id: $SID" \
    -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
    -d '{"jsonrpc":"2.0","id":2,"method":"tools/list"}' | grep -o '"name":"[a-zA-Z_-]*"' | sort; }

No token first. The gateway rejects the request before any MCP traffic flows:

curl -s -o /dev/null -w '%{http_code}\n' -X POST http://mcp.localtest.me/registry/incident-tools \
  -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"x","version":"0"}}}'
401

Now the same endpoint as each user:

tools "$(mint alice alice)" http://mcp.localtest.me/registry/incident-tools
"name":"acknowledge_alert"
"name":"correlate_alerts"
"name":"list_open_alerts"

tools "$(mint bob bob)" http://mcp.localtest.me/registry/incident-tools
"name":"correlate_alerts"
"name":"list_open_alerts"

Same endpoint, same request, different tool lists. bob's JWT carries Groups: ["developers"], and the write tool is gone. The filtering happens inside tools/list, so a model driven by bob's credentials never learns acknowledge_alert exists, and the same check runs again on tools/call if the name is guessed anyway.

Where that decision lives

Nobody wrote a policy for incident-tools. The platform team set two AgentgatewayPolicy objects on the Virtual runtime's parent route, once, before this server existed. Every route the registry creates through virtual-default inherits both, so a server deployed minutes ago arrives already governed:

apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: registry-virtual-jwt
  namespace: agentgateway-system
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: registry-virtual-parent
  traffic:
    jwtAuthentication:
      mode: Strict
      providers:
        - issuer: http://keycloak.localtest.me/realms/agentregistry
          jwks:
            remote:
              url: http://keycloak.keycloak.svc.cluster.local:8080/realms/agentregistry/protocol/openid-connect/certs
---
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: registry-virtual-tools
  namespace: agentgateway-system
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: registry-virtual-parent
  backend:
    mcp:
      authorization:
        action: Allow
        policy:
          matchExpressions:
            - 'jwt.Groups.exists(g, g == "admins")'
            - 'jwt.Groups.exists(g, g == "developers") && !(mcp.tool.name.contains("acknowledge") || mcp.tool.name.contains("printenv"))'

The first policy validates the bearer token against Keycloak and turns away anything without one. The second is the fine-grained layer: CEL expressions evaluated per tool, per request, with the validated JWT's claims (jwt.Groups) and the tool's name (mcp.tool.name) in scope. Admins match the first expression and see everything; developers match the second only for tools whose names avoid the deny patterns. Because the rule matches on claims and names rather than on servers, it needed no update when incident-tools appeared.

Optional: one endpoint for every server

Everything above is per-server and self-service. There is a complementary platform-side pattern: a single endpoint that merges every MCP server behind one URL and one tools/list. It is one backend object with a selector instead of a server list:

apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayBackend
metadata:
  name: mcp-all
  namespace: agentgateway-system
spec:
  mcp:
    targets:
      - name: kagent-servers
        selector:
          namespaces:
            matchLabels:
              kubernetes.io/metadata.name: kagent
          services:
            matchExpressions:
              - key: app.kubernetes.io/name
                operator: Exists

The selector matches any Service in the kagent namespace whose port carries appProtocol: kgateway.dev/mcp, which is exactly the marker kagent stamps on every MCP server it runs. The gateway watches Services continuously, holds an upstream session to each match, merges their tools on tools/list, and prefixes each name with the server it came from so that two servers can both ship a search tool. On tools/call it strips the prefix and routes to the owner. The server deployed in step 3 joined this endpoint the moment its Service appeared; no YAML changed:

tools "$(mint alice alice)" http://mcp.localtest.me/mcp
"name":"everything-server-http_echo"
"name":"everything-server-http_printenv"
"name":"everything-server-http_reverse_text"
"name":"everything-server-http_sum"
"name":"everything-server-http_to_uppercase"
"name":"incident-tools-http_acknowledge_alert"
"name":"incident-tools-http_correlate_alerts"
"name":"incident-tools-http_list_open_alerts"
"name":"my-mcp-http_word_count"

The same JWT and claims policies apply on this route, so bob's version of that list is missing acknowledge_alert and printenv. The two patterns answer different questions and coexist happily: the Virtual runtime gives a team a governed endpoint for their server with the exposure recorded in the registry; the federated backend gives the platform one address for everything.

Scaling this past a handful of servers

The policy in this article matches tool names by substring, and that is deliberate shorthand: it shows the mechanism, claims and tool name in scope, evaluated per tool, in one readable line. A platform team should not be guessing tool names across hundreds of servers. Four tips keep the same mechanism while changing what the expression anchors on:

1. Grant by server, not by tool. On a federated endpoint every tool name arrives prefixed with the server it came from, so the realistic per-team rule is one line scoping a group to its servers: jwt.Groups.exists(g, g == "payments") && mcp.tool.name.startsWith("payments-"). The unit of grant is the server, and the rule does not change when a server adds tools.
2. Enforce naming and annotation conventions at catalogue intake, then key policy off the convention. The platform publishes a contract, for example that write tools carry destructiveHint or a write_ prefix, and enforces it where servers enter the catalogue. Once intake only admits servers that follow the convention, a rule like "developers do not get destructive tools" is safe because the metadata it reads has been checked. The intake side of that is covered in the MCP intake review article: annotations are a claim, and intake is where the claim gets checked against the evidence.
3. Distribute ownership with per-deployment policy. The Deploy dialog's agentgateway Policies section attaches policy to that one exposure. The team who owns the server writes its allow-list, since they are the ones who know their tools; the platform keeps only the baseline.
4. Generate list-like policy from the registry. The registry already knows every approved server and tool, so a pipeline can render the gateway allow-list from registry state: the policy becomes a reviewed, regenerated artifact rather than a hand-maintained list. The same shape, CI writing the policy that says which servers and tools need what, is worked through in the approval-gating lab.

What the platform team hand-maintains stays small: authenticate everyone, set the default posture, scope teams to their servers. Conventions are enforced at intake, per-server detail belongs to the owning team at deploy time, and anything list-like is generated from the catalogue.

Who is allowed to do any of this

Every click on this page was made by one of two Keycloak users: alice in the admins group, and bob in developers. What each of them may do in the registry, publish but not delete, deploy but not author policy, is decided by registry access policies bound to those IdP groups, with default deny underneath. Setting that up is its own walkthrough: part 2, fine-grained RBAC for the registry UI, which builds the exact self-service policy this page ran under and shows the failure modes it hit live.

Where it can go wrong

Each of these was hit live on the way to the working state above.

The same objects from the CLI

Every UI action above writes a registry resource, so the whole flow also scripts with arctl. The four objects, in order:

apiVersion: ar.dev/v1alpha1
kind: Runtime
metadata:
  name: kagent-demo
spec:
  type: Kagent
  telemetryEndpoint: http://agentregistry-enterprise-telemetry-collector.agentregistry-system.svc.cluster.local:4318
  config:
    kagentUrl: "http://kagent-controller.kagent:8083"
    namespace: kagent
---
apiVersion: ar.dev/v1alpha1
kind: MCPServer
metadata:
  name: incident-tools
spec:
  description: 'Incident tool server: list_open_alerts, correlate_alerts, acknowledge_alert.'
  title: incident-tools
  source:
    package:
      origin:
        identifier: localhost:5001/incident-tools:latest
        type: oci
        oci:
          serverName: incident-tools
      transport:
        path: /mcp
        port: 3000
        type: http
---
apiVersion: ar.dev/v1alpha1
kind: Deployment
metadata:
  name: incident-tools-kagent
spec:
  targetRef:
    kind: MCPServer
    name: incident-tools
    tag: latest
  runtimeRef:
    kind: Runtime
    name: kagent-demo
---
apiVersion: ar.dev/v1alpha1
kind: MCPServer
metadata:
  name: incident-tools-remote
spec:
  title: incident-tools-remote
  description: 'incident-tools exposed through the virtual MCP gateway.'
  remote:
    url: http://incident-tools.kagent.svc.cluster.local:3000/mcp
    type: streamable-http
---
apiVersion: ar.dev/v1alpha1
kind: Deployment
metadata:
  name: incident-tools-virtual
spec:
  targetRef:
    kind: MCPServer
    name: incident-tools-remote
    tag: latest
  runtimeRef:
    kind: Runtime
    name: virtual-default
  runtimeConfig:
    route:
      pathSuffix: /incident-tools

Apply with arctl apply -f against the registry URL and the UI shows the same servers, deployments and exposed URLs as if they had been clicked in. That symmetry is the useful property: the UI for people, the same resources for pipelines, one catalogue underneath both.

Next: part 2, fine-grained RBAC for the registry UI: the access policy that decided what alice and bob could each do on this page, built step by step.
